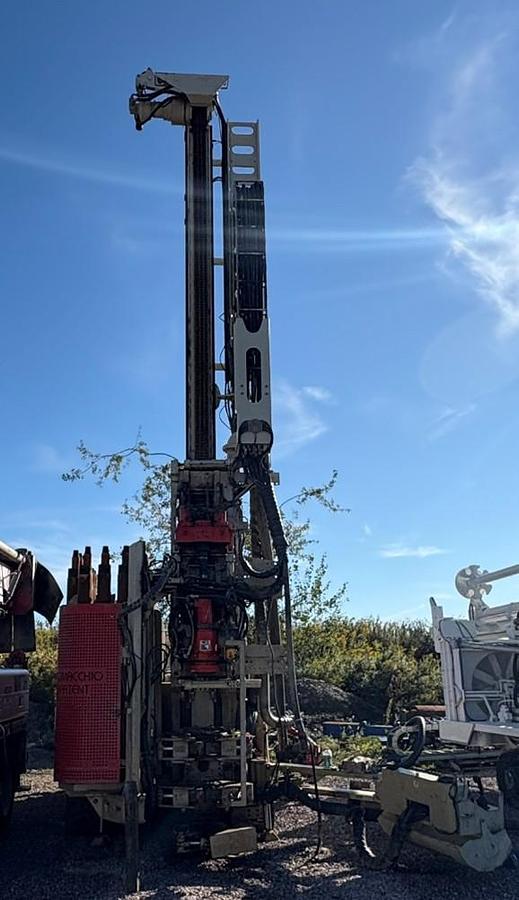

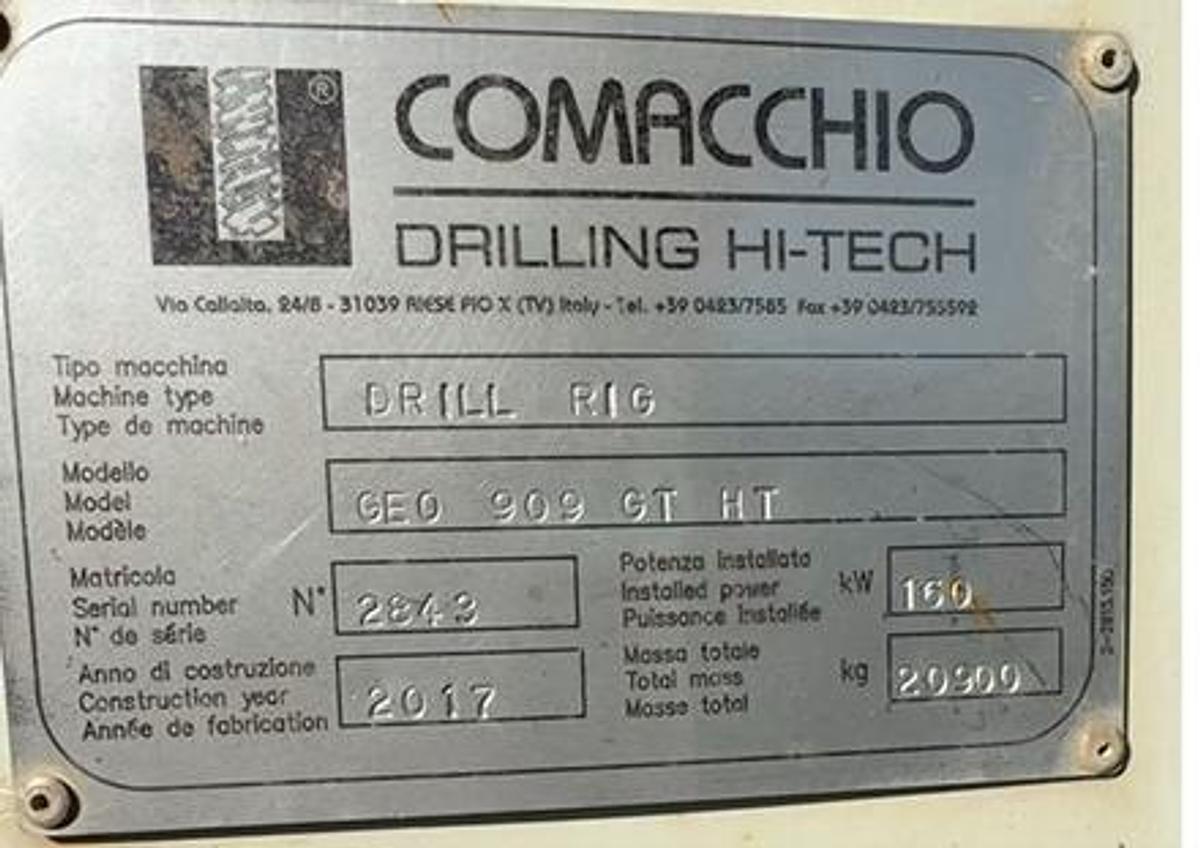

2017 Comacchio GEO 909 GT HT (geothermal)

The GEO 909 GT is the flagship of the Comacchio range of geothermal drilling rigs. The double head system, designed for simultaneous drilling and casing, not only stabilizes the borehole, but allows to drill safer and faster, improving spoils handling (thus reducing environmental impacts). It also helps preserve groundwater resources, preventing aquifer cross-contamination.

Pressure Washer onboard for cleaning

Lubricant: Beka-Max Model EP-1 Central Lubrication

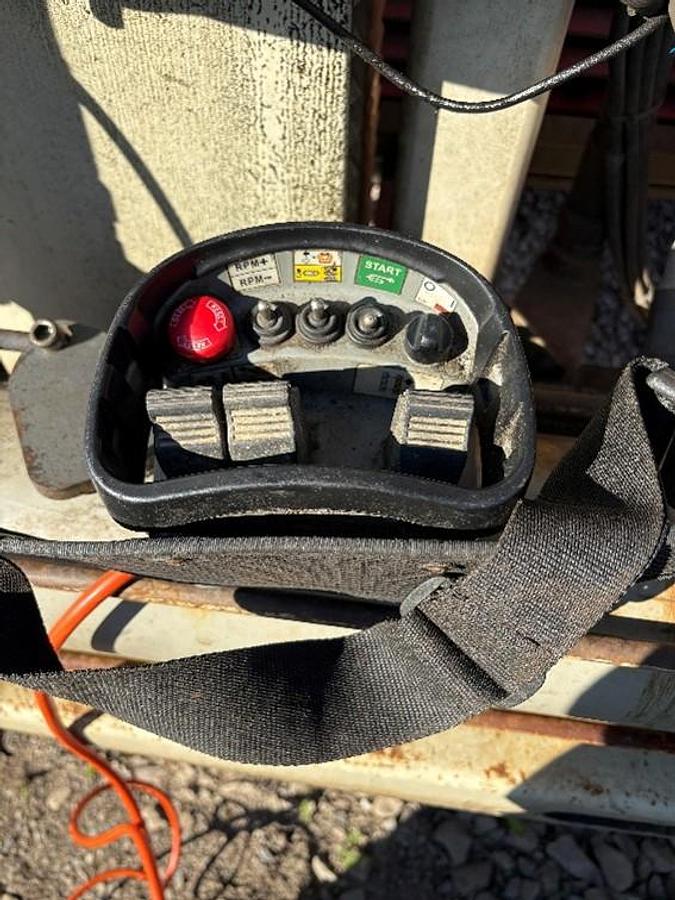

Machine Movement Remote

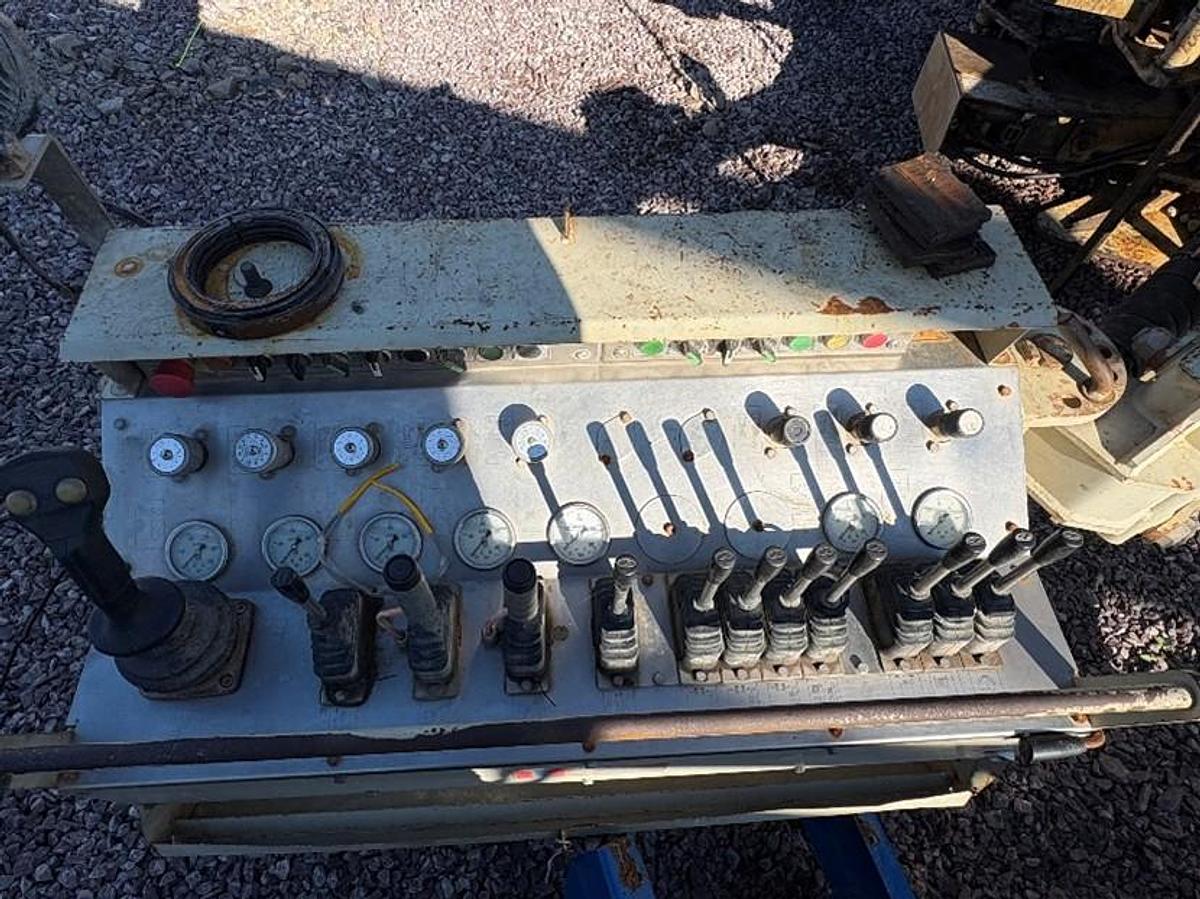

Drilling Control Panel

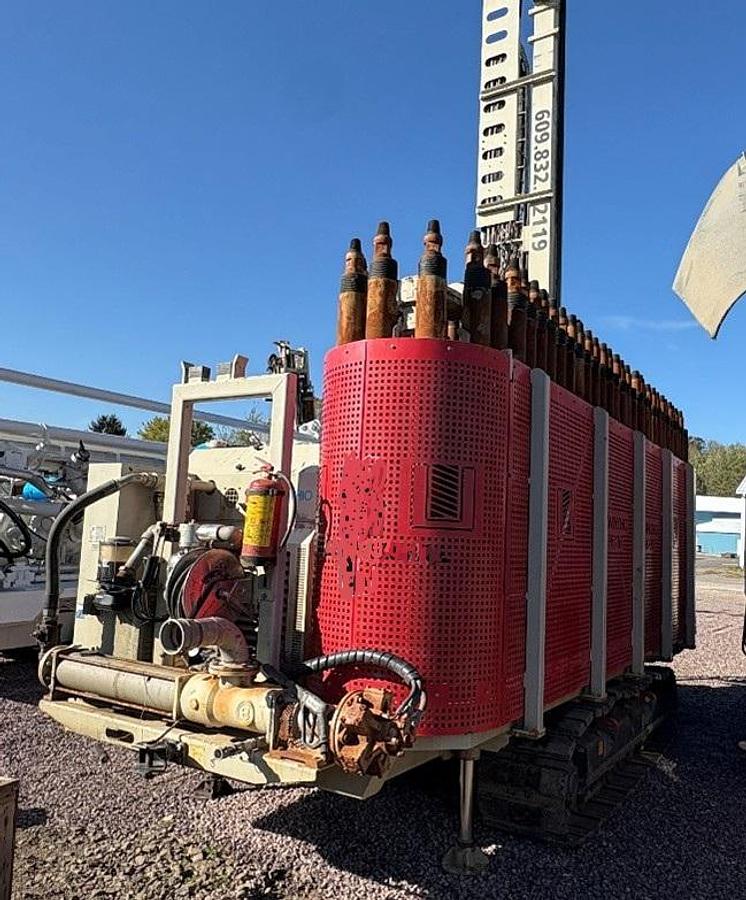

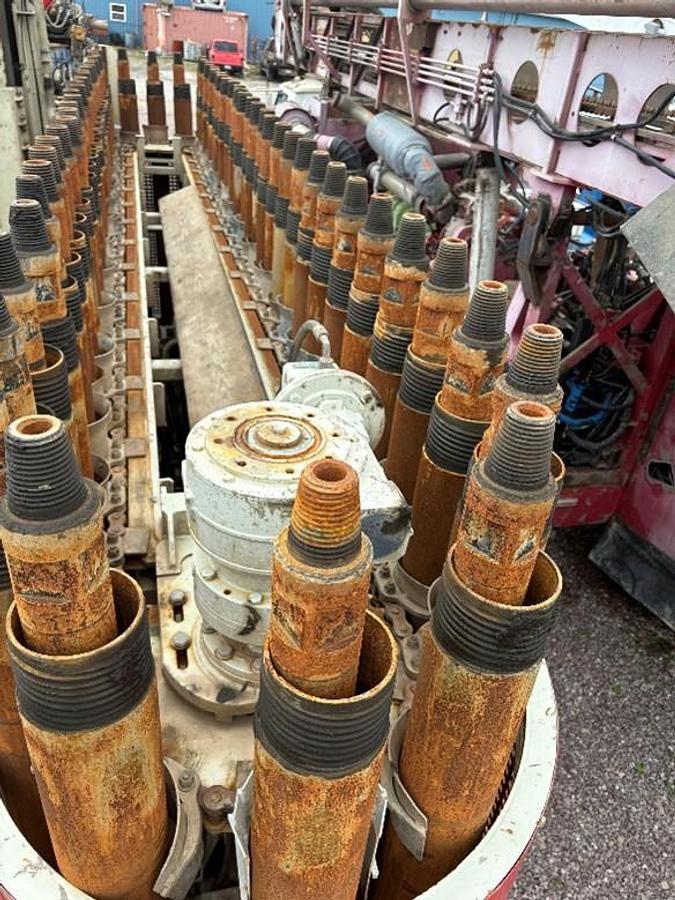

64 Rods and Casing Rod Dia 3.5” Casing Dia 5.5” Rod/Casing length 6.5’ Max weight 13,669 lbs

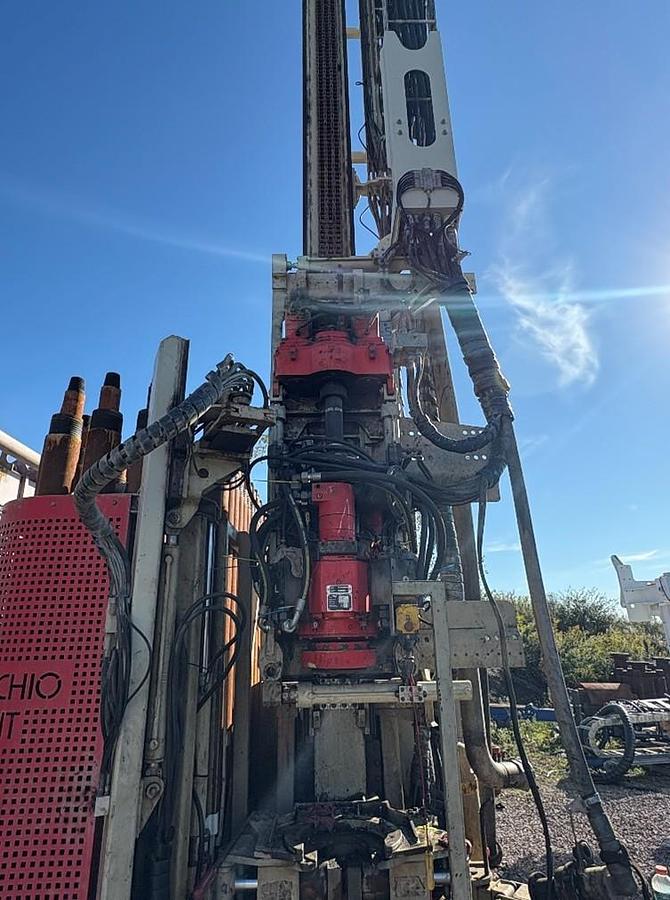

Upper Head R9000C 2 gears torque 4,641/2,321 lbft

Lower Head Eurodrill RH3200 3 gears Torque 9,283/18,565/27,848 lb.ft Speed 60/30/20 rpm
